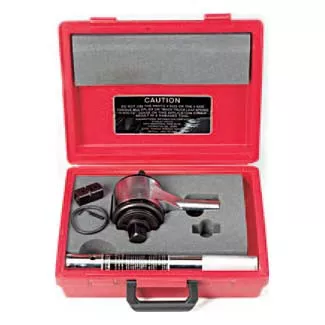

Torque Multiplier – 3,200 Foot Pounds 6232

Maximum rated input: 173 ft/lb (235 Nm, 23.9 mkg).Maximum rated output: 3,200 ft/lb (4,338 Nm, 443 mkg).Effective multiplication: 18.5:1 W5%.Reaction system: tubular reaction bar.Gear system: two stage planetary.Angle of turn protractor: 5 increments.Anti-backlash device: self-contained, 3 position.Product No.: 6232Input Drive: 1/2” Sq. FemaleOutput Drive: 1” Sq. MaleGear Ratio: 20.2Head width: 6-3/8”Head length: 4-1/32”Handle length: 14-1/8”Overall length: 20”Weight: 22.1 lbs
