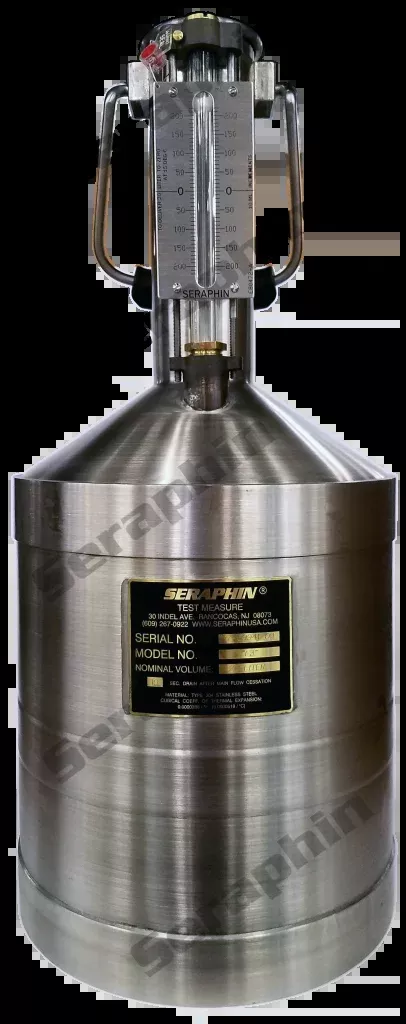

Seraphin 20 Liter Stainless Steel Calibration Can

CALIBRATION TYPE

Factory CALIBRATION by standards traceable to National Institute of Standards and Technology

CONSTRUCTION METHOD

Built to OIML R-120, N.I.S.T. Handbook 105-3 Standards and API Manual of Petroleum Measurement Standards Chapter 4

DESIGN

Reinforcing bands to prevent distortion of prover when full with liquid and when being transported.

GAUGE ASSEMBLY

Equipped with a (liquid -level) gauge tube mounted on the side of the neck

GRIP

Rubber grip on test measure handle

MATERIAL

TYPE 304 STAINLESS STEEL

NOMINAL CAPACITY

20 Liters – calibrated “to deliver” at 15 Deg C

NOMINAL DIAMETER

11 inches

NOMINAL HEIGHT

26 inches

REQUIRED SCALE RANGE

± 200 milliliters. The gauge scale shall be graduated both above and below the nominal capacity graduation by an amount not less than 1.5 % of the test measure

SCALE RESOLUTION

10 MILLILITERS

WEIGHT (DRY)

15 LBS.

TOLERANCE

0.02% Scale Accuracy

VOLUME INDICATION

ALUMINUM GRADUATED SCALE

BOTTOM

Concave and of adequate thickness to prevent distortion when filled.
