OCIO detects static pressure generated by fluid height through a tube inserted into the tank, displaying fluid level or volume.
The system consists of:
• A tube for detecting static pressure: the tube end is inserted from the top of the tank and lowered down into the liquid until it touches the bottom

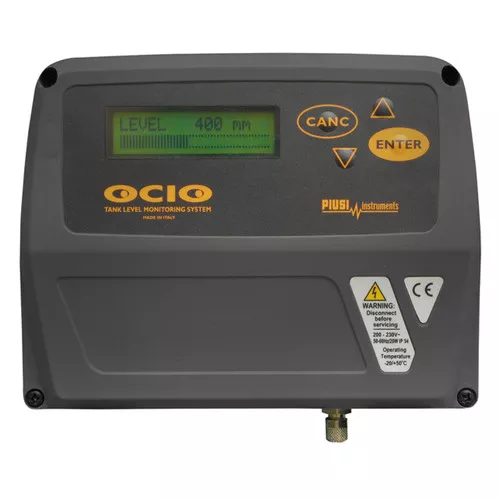

• A control unit for displaying the level and managing the system
• 3 feet of probe hose
The software is used to:
• Set tank type and dimensions• Define alarm levels• Define indication level• Define measurement unit• Calibrate the instrument
Depending on set levels, the control unit activates or deactivates the contact by acting as a remote switch for starting alarms or cutting power to the connected equipment. The system allows the connection of two alarms or lock devices. Accuracy is +/- 1%. AC powered, 120 V, 60 Hz.
Maximum measureable height: 12 feetMaximum probe hose length: 164 feet
