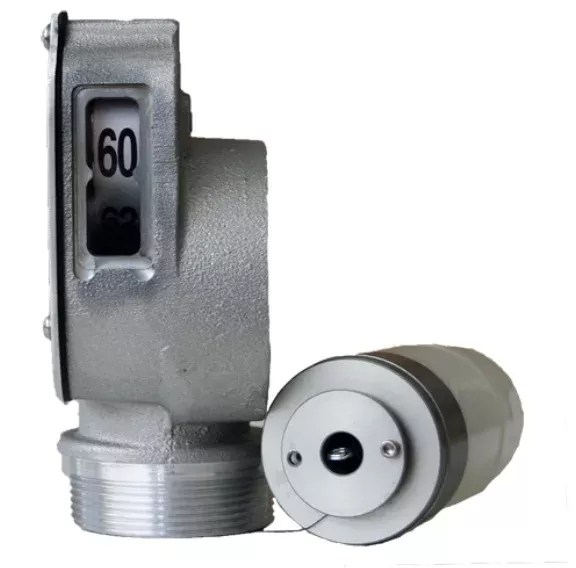

The Morrison 718 liquid level gauge is designed for measuring liquid level in an aboveground storage tank containing diesel, fuel oil, oil, and used (waste) oil. The gauge has also been approved for anti-freeze, brake fluid, windshield washer fluid, and automatic transmission fluid. The 718 mounts on top of the tank and is activated by a float connected to a cable.
Standard Features
718
2” male NPT threads
Float installs through a 2” female threaded opening or a schedule 40 riser*
Measurement readout in inches
Two models accommodate tank depths up to 72” and 108”
Easy float length adjustment (1” or 2” increments)
Vapor space sealed to prevent lens fogging
UV resistant measurement tape
Approximately 12” of extra cable to accommodate installations with riser pipes
