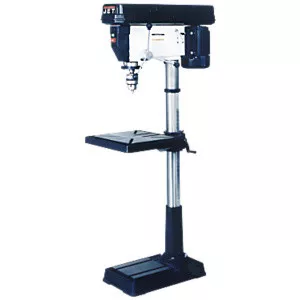

JDP-20MF, 1″ Drilling Capacity, 1HP, 1Ph, 115/230V

Name: JDP-20MF, 1" Drilling Capacity, 1HP, 1Ph, 115/230V
Brand: goodfitandfixgear.com
SKU: JDP-20MF[1]
Price: 1053.60 USD
Availability: InStock

Original price was: $1,330.54.Current price is: $1,053.60.

Sale!

SKU: JDP-20MF[1] Category: hot sale

Description

Model Number	JDP-20MF
Brand	Jet
Overall Dimensions	33 x 19 x 67
Height	12.9 inch
Width	26.5 inch
Length	58 inch
Net Weight	282 pound
Gross Weight	325 pound
Motor	1-1/2HP, 1Ph , 115/230V, Prewired 115V
Number of Spindle speeds	12
Range of Spindle Speeds (RPM)	150-4,200
Spindle Taper	MT-3
Quill Diameter (in.)	2.44
Max Distance Spindle to Table ( in.)	29-1/8
T-Slots Number and Size (in.)	6 x 1/2
T-Slot Centers (in.)	3-1/2
Work Table Weight Capacity (lbs.)	80
Column Diameter (in.)	3-3/8
Base Dimensions (LxWxH/ in.)	13-3/4 x 22-3/4
Drilling Capacity Cast Iron (in.)	1
Drilling Capacity Mild Steel (in.)	3/4
Quill Travel (in.)	4-5/8
Table Size (in.)	18-1/2 x 16
Chuck Size (in.)	3/4
Drills to Center of Circle (in)	20-1/2
Spindle Distance to Base (in.)	46-3/4
Base Work Table (in.)	13 x 8-1/2
Base Slots Number & Size (in.)	2 x 5/8
