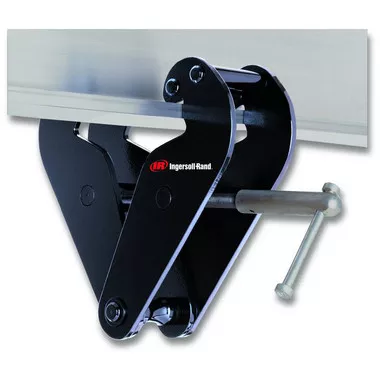

Ingersoll Rand BCT-2 Beam Clamp | BC Series | 2 Ton Capacity

Original price was: $147.02.Current price is: $97.07.

Sale!
SKU: BCT-2 Category:
Share

Ingersoll Rand beam clamps provide temporary or permanent mounting options for a wide range of tapered or flat beams. They are the ideal rigging device for lifting, pulling, or suspending loads. These units have been designed and verified – by actual pull testing – to achieve a minimum design factor of 5:1 for vertical lifting with a powered or manual hoist, which meets ASME B30.16. These beam clamps offer quick and simple one-handed installation without requiring any tools. Units accommodate hook-mounted hoist or load blocks with minimal loss of headroom. The clamp jaws are designed to reduce beam stress by applying the load inside the flange edge.

Type: Beam Clamp | Series: BC Series | Capacity (tons): 2 | Capacity (lbs.): 4400 | Headroom (in.): 4.016 – 6.102 | Beam Flange Widths (in.): 2.95 – 8.66 | Lifting Point: Shaft | Lock Mechanism: Locknut | Housing Material: Steel | Length (in.): 7.09

NOTE: Older Model BC-2 was superseded by BCT-2

Features and Benefits:

  • Quick installation by hand and with no required tools
  • Low headroom design adjusts to fit a wide range of flat or tapered beams
  • Meets ASME B30.16 for use with powered or manual hoists
  • Each unit is serialized, supplied with a test certificate, and a manual
  • Metric rated for vertical lifting or in-line pulling at 4400 lbs per ton
  • Made In USA

Looking for more information about Ingersoll Rand Beam Clamp? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email [email protected]. We can help!
