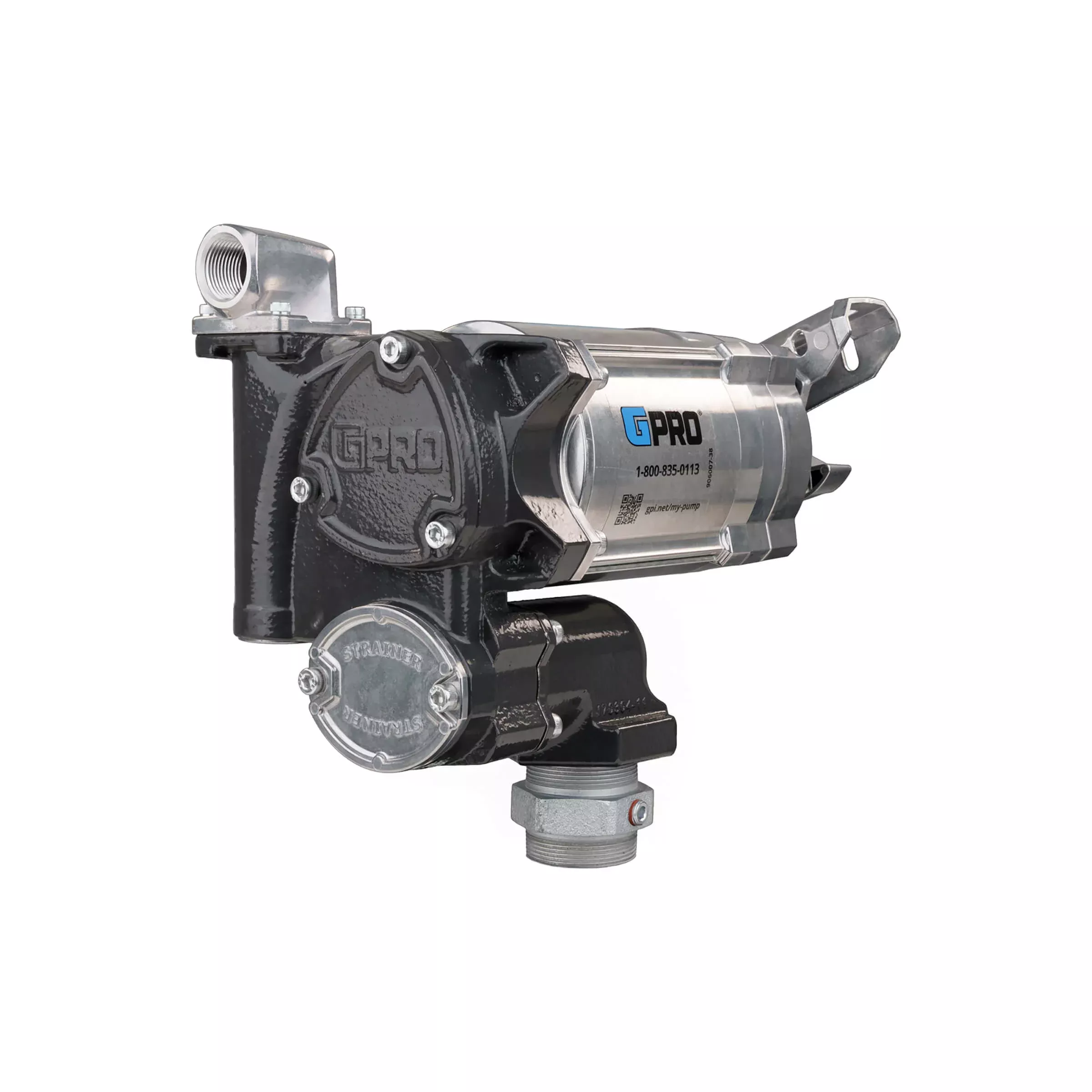

GPI 76 L/min 230V ATEX-IECEx Approved Fuel Transfer Pump with BSPP Thread Type

Name: GPI 76 L/min 230V ATEX-IECEx Approved Fuel Transfer Pump with BSPP Thread Type
Brand: goodfitandfixgear.com
SKU: 171000-04
Price: 357.42 USD
Availability: InStock

Original price was: $511.20.Current price is: $357.42.

Sale!

SKU: 171000-04 Category: hot sale

Description

Compatible Fluids	Avgas (100LL) \| Diesel Fuel up to B20 \| Gasoline up to E15 \| Jet A \| Jet A-1 \| Kerosene
Max. Flow Rate	20 GPM (76 L/min)
Voltage Input	230V (AC) 50/60Hz, 115V (AC) 60Hz Dual Voltage Configurable
Horsepower	0.50
Technology	Sliding Vane
Amps Rated	2.7 amps
Duty Cycle	30 min on/30 min off
Power Cord	Not Included
Max. Discharge Pressure	UP TO 25 PSI (1.72 Bar)
Operating Temperature	-20° F to 125° F (-29° C to 52° C)
Discharge Lift	Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C)
Wetted Materials	Acetal \| Aluminum \| Carbon \| Cast Iron \| FKM \| NBR \| PBT/Polyester \| Steel
Mounting Type/Thread	Direct Mount, 2 in. BSPT
Suction Pipe	Not included
Inlet	1 in. Female BSPP
Outlet	Modular, 1 in. Female BSPP
Dispensing Hose	Not included
Nozzle Holder Type	Lockable with spout guard
What’s in the Box	V20-230PX Fuel transfer pump, Lockable nozzle holder, Modular outlet fitting w/hardware, Tank adapter, Thread tape, Owners manual
Warranty	Limited Lifetime Warranty
UPC	031401011609
