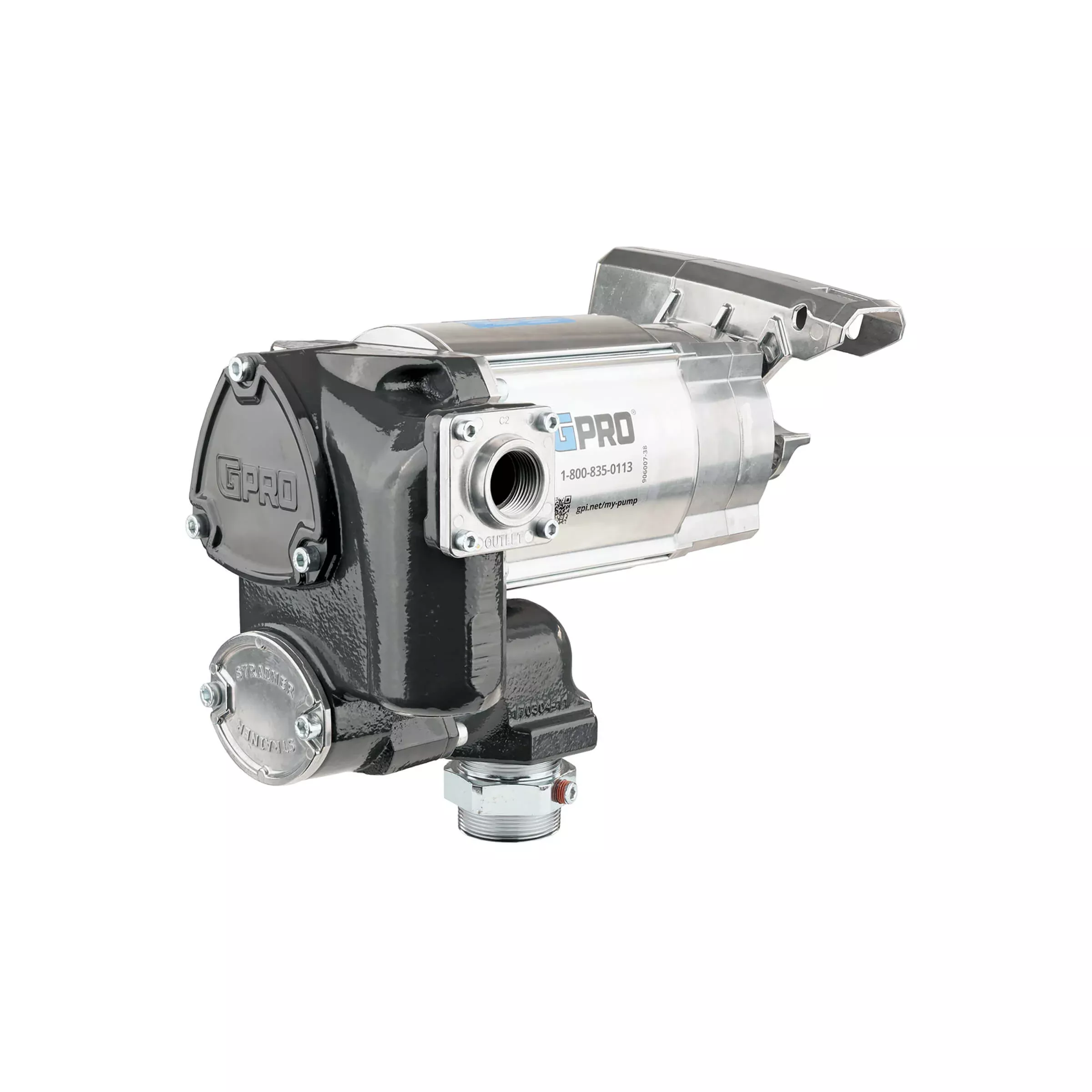

Name: GPI 35 GPM 120V AC Fuel Transfer Pump
Brand: goodfitandfixgear.com
SKU: 172000-01
Price: 116.77 USD
Availability: InStock

GPI 35 GPM 120V AC Fuel Transfer Pump

Original price was: $199.99.Current price is: $116.77.

Sale!

SKU: 172000-01 Category: hot sale

Compatible Fluids	Avgas (100LL) \| Diesel Fuel up to B20 \| Gasoline up to E15 \| Jet A \| Jet A-1 \| Kerosene
Max. Flow Rate	35 GPM (132 L/min)
Voltage Input	120V (AC) 60Hz, 240V (AC) 60Hz Dual Voltage Configurable
Horsepower	1
Technology	Sliding Vane
Amps Rated	8.1 amps (120V/60Hz) / 4.3 amps (240V/60Hz) *NOTE: 50Hz supply voltage will produce a pump rate of 110 L/min, suction lift of 3.9m, current draw of 4.8A, and motor performance of 1405 RPM, and .83 HP.
Motor Protection	Thermal Breaker (Automatically Resets)
Duty Cycle	30 min on/30 min off
Power Cord	Not Included
Max. Discharge Pressure	Up to 23 PSI (1.6 bar)
Operating Temperature	-20° F to 125° F (-29° C to 52° C)
Discharge Lift	Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C)
Wetted Materials	Acetal \| Aluminum \| Carbon \| Cast Iron \| FKM \| NBR \| PBT/Polyester \| Steel
Mounting Type/Thread	Direct Mount, 2in. MNPT
Suction Pipe	Not included
Inlet	1.25-inch FNPT
Outlet	1-inch FNPT
Dispensing Hose	Not included
Nozzle Holder Type	Lockable with spout guard
What’s in the Box	V35-115PO 120V AC 35 GPM Fuel transfer pump, Lockable nozzle holder, Modular and straight NPT outlet fittings w/hardware, NPT Tank adapter, Thread tape, Owners manual
Warranty	Limited Lifetime Warranty
UPC	031401013610
