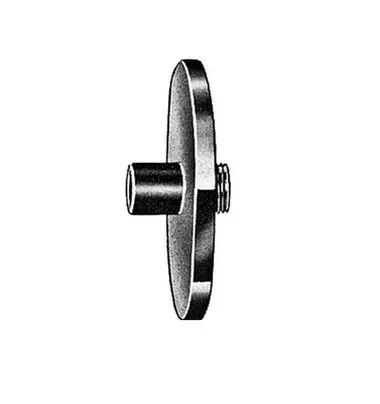

Dotco 14-2631 Router Guide For Router Bits with 3/8″ Shank Bits

Built for controlled routing with larger shank cutters, the Dotco 14-2631 Router Guide is a guide accessory for router bits with 3/8″ shanks. It is made for use on Dotco 12-10, 12-20, 12-25, and 12-40 series routers, helping operators maintain steady bit positioning during trimming, shaping, and edge-routing work.

This guide has dimensions of A: 2-1/2″, B: 5/8″, C: 5/8″, and D: 1/8″, giving buyers the key fitment values needed when matching the guide to the router setup, bit length, and desired bit protrusion.

Type: Router Guide | Model: 14-2631 | Compatible Bit Shank: 3/8″ | Dimensions A: 2-1/2″ | Dimensions B: 5/8″ | Dimensions C: 5/8″ | Dimensions D: 1/8″

Important: Insert the bit into the collet as far as possible, then pull out 1/16” and tighten the collet.

In an emergency: If it is necessary to pull out the bit more than 1/4”, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.

Applications:

• Composite trimming and edge routing using compatible Dotco routers.
• Aerospace and fabrication routing where guide dimensions must match the setup.
• Plastic, laminate, and panel routing with 3/8″ shank router bits.
• Maintenance replacement for existing Dotco router guide configurations.

FAQs:

• Q: What router bit shank size does this guide fit?A: The Dotco 14-2631 is for router bits with 3/8″ shanks.
• Q: Which Dotco router series can use this guide?A: It is listed for use on Dotco 12-10, 12-20, 12-25, and 12-40 series routers.
• Q: Is this a router or an accessory?A: This is a router guide accessory only. The router and router bit are not included.
