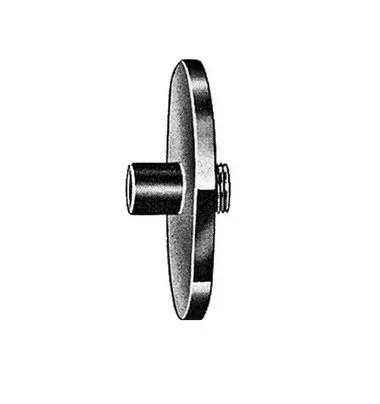

Dotco 14-2540 Router Guide For Router Bits with 3/8″ Shank Bits

Built for precision routing applications, the Dotco 14-2540 Router Guide is designed for use with compatible Dotco pneumatic routers and 3/8″ shank router bits. This guide helps maintain consistent routing alignment, making it easier to achieve accurate edge trimming, profiling, and template-guided routing in composite fabrication, aerospace manufacturing, woodworking, and other industrial finishing applications.

The 14-2540 router guide features Dimensions A: 1-1/2″, B: 1″, C: 1/2″, and D: 3/8″. These dimensional specifications allow users to match the guide to the appropriate routing setup or replace an existing guide with confidence.

Type: Router Guide | Model: 14-2540 | Compatible Bit Shank: 3/8″ | Dimension A: 1-1/2″ | Dimension B: 1″ | Dimension C: 1/2″ | Dimension D: 3/8″

Important: Insert the bit into the collet as far as possible, then pull out 1/16” and tighten the collet.

In an emergency: If it is necessary to pull out the bit more than 1/4”, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.

Applications:

• Composite panel trimming and edge finishing.
• Aerospace routing and laminate fabrication.
• Template-guided routing in industrial production environments.
• Woodworking and fabrication projects requiring controlled routing accuracy.

FAQs:

• Q: Is the Dotco 14-2540 a complete router?A: No. It is a router guide accessory designed for use with compatible Dotco pneumatic routers.
• Q: Which router bits is this guide intended for?A: The 14-2540 is designed for router bits with a 3/8″ shank.
• Q: Why should I verify the guide dimensions before ordering?A: Matching the A, B, C, and D dimensions to your existing guide or router setup helps ensure proper fit and routing performance.
