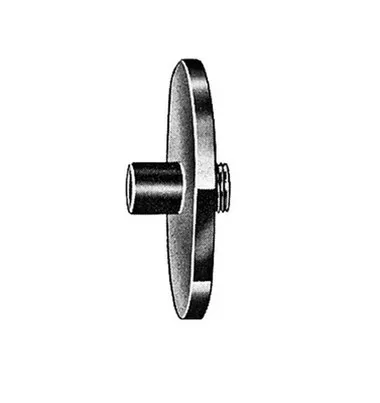

Dotco 14-2500 Router Guide For Router Bits with 1/4″ Shank Bit

Built for accurate, guided routing with compatible Dotco pneumatic routers, the Dotco 14-2500 Router Guide is designed for use with 1/4″ shank router bits. This accessory helps maintain a controlled routing path during trimming, edge-finishing, and precision material removal, making it easier to produce consistent, repeatable results.

The 14-2500 router guide is intended for applications involving composite materials, aerospace components, woodworking, laminates, and general fabrication. Supplied as a router guide accessory only, it is designed for use with compatible Dotco routers and matching 1/4″ shank router bits.

Type: Router Guide | Model: 14-2500 | Compatible Bit Shank: 1/4″ | Application: Router Bit Guidance

Important: Insert the bit into the collet as far as possible, then pull out 1/16″ and tighten the collet.

In an emergency: If it is necessary to pull out the bit more than 1/4″, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.

Applications:

• Composite panel trimming and precision edge finishing.
• Routing aerospace components requiring controlled tool guidance.
• Woodworking and laminate trimming with compatible 1/4″ shank router bits.
• General fabrication and production routing where repeatable accuracy is important.

FAQs:

• Q: Which router bits are compatible with the Dotco 14-2500?A: The 14-2500 is designed for router bits with a 1/4″ shank.
• Q: Does this product include a router or cutting bit?A: No. This SKU includes the router guide accessory only. Compatible routers and router bits are sold separately.
• Q: What is the purpose of a router guide?A: A router guide helps keep the router aligned during routing operations, improving consistency and control while trimming or finishing workpieces.
