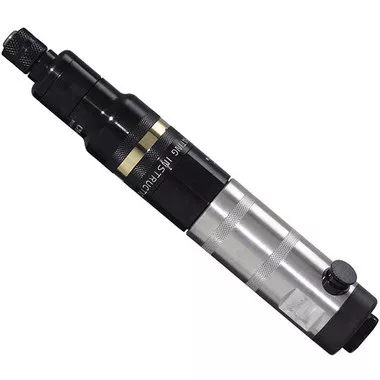

Cleco 8RSA-5BQ Push Button Reverse Inline Screwdriver | 8-Series | 400 RPM | 0.5 – 6.2 (ft-lbs) Torque Range

Built for light-to-medium assembly work where repeatable fastening matters, the Cleco 8RSA-5BQ Push Button Reverse Inline Screwdriver combines an inline body style with 400 RPM free speed and a 0.5 – 6.2 ft-lbs torque range for controlled screwdriving in production environments. The inline configuration keeps the tool aligned with the fastener, while the push-to-start operation helps reduce unnecessary trigger movement during repetitive rundown tasks. A push-button reverse function supports fast removal or correction of fasteners without changing tools.

Part of Cleco’s 8-Series, this pneumatic screwdriver uses a Clecomatic clutch (a torque-control clutch that helps deliver repeatable shut-off performance once the set torque is reached) for assembly applications where consistency is more important than raw speed. The 1/4″ hex quick-change output drive allows fast bit changes, making the 8RSA-5BQ a practical choice for appliance assembly, electronics production, light manufacturing, and bench assembly stations that require controlled fastening with minimal tool repositioning.

Type: Inline Pneumatic Screwdriver | Series: 8-Series | Start Type: Push-to-Start | Reverse Type: Push Button Reverse | Free Speed: 400 RPM | Torque Range: 0.5 – 6.2 ft-lbs / 0.8 – 8.5 Nm | Length: 9.6″ | Weight: 2.38 lbs | Side to Center: 0.77″ | Output Drive: 1/4″ Hex Quick Change | Air Consumption: 19.1 SCFM | Air Inlet: 1/4″ NPT | Minimum Hose I.D.: 3/8″ | Rated Air Pressure: 90 PSI / 620 kPa

Features:

• Compact inline design supports efficient use at bench stations, assembly cells, and fixture-based work areas.
• Push-to-start operation activates the tool when the bit is pressed into the fastener, helping reduce hand movement during repetitive fastening.
• Push button reverse allows quick fastener removal or correction without switching tools or changing setup.
• Dependable Clecomatic clutch provides consistent torque accuracy and repeatability for controlled assembly work.
• Cleco motor construction supports reliable pneumatic performance in production fastening environments.
• 1/4″ hex quick change output drive allows fast bit swaps for different screw types and assembly tasks.
• Easy to repair and maintain, with high parts interchangeability with other Cleco products.
• Standard equipment includes operating instructions and service manual, suspension bail, and all torque springs required to meet the indicated torque range.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Appliance assembly: Fastening panels, brackets, covers, and internal components where repeatable torque control helps protect parts and threads.
• Electronics production: Running screws into enclosures, frames, and light assemblies, where controlled rundown is preferred over impact-style fastening.
• Automotive interior and component assembly: Installing trim, small brackets, housings, and subassemblies that require moderate torque and consistent repeatability.
• General manufacturing: Bench assembly, light fabrication, and repetitive fastening tasks using 1/4″ hex screwdriver bits.
• Repair and rework stations: Removing and reinstalling screws during inspection, service, and production correction work.

FAQs:

• Q: What does push-to-start mean on the Cleco 8RSA-5BQ?A: Push-to-start means the screwdriver begins running when the bit is pressed into the fastener. This helps operators work quickly during repetitive assembly because there is no separate trigger motion required.
• Q: What is the benefit of the push button reverse?A: Push button reverse lets the operator back out screws or correct a fastener without changing tools. It is useful in assembly and rework areas where fastener removal is part of the normal process.
• Q: What type of bits does this screwdriver accept?A: The 8RSA-5BQ uses a 1/4″ hex quick change output drive. Use compatible 1/4″ hex screwdriver bits matched to the fastener style and application.
• Q: Is this tool for high-torque bolting?A: No. This is a controlled pneumatic screwdriver with a 0.5 – 6.2 ft-lbs torque range. It is intended for screwdriving and light-to-medium assembly fastening, not impact wrench or large bolt applications.
• Q: What air pressure is required for rated performance?A: Cleco rates this tool at 90 PSI / 620 kPa. Use a properly sized air supply, 3/8″ minimum hose I.D., and clean regulated air to maintain consistent tool performance.
