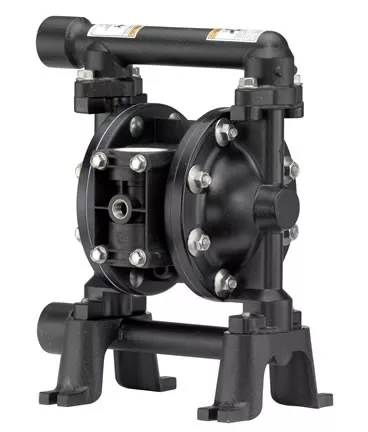

ARO Diaphragm Pump are engineered to be simple and smart, resulting in efficient operation, high performance, and low maintenance. AROPD07R-AAS-PTT Diaphragm Pump is a truly versatile fluid handling solution for numerous applications, practically compatible with any automation system in the industry. Diaphragm Pump compact, rugged design allows easy mobility to withstand tough industrial applications. ARO PD07R-AAS-PTT Diaphragm Pump has a motor design which delivers optimum air efficiency. It also comes with pre-assembled components for hassle-free and error-proof installation and operator comfort. ARO Compact Series Metallic Diaphragm Pumps are known for industry-leading efficiency, reliability, flow rates, and a large range of materials and porting, ensuring consistency in even the most demanding environments.
Type: Diaphragm Pump | Ratio: 1:1 | Max (gpm): 13.6 | Max (l/mn): 51.5 | Displacement Per Cycle (gal.): 0.030 | Displacement Per Cycle (Liters): 0.11 | Air Inlet (Female): 1/4 – 18 | Max Operating Pressure (PSI): 100 | Max Operating Pressure (bar): 6.9 | Suspended Solids Max Diameter (in.): 0.09375 | Suspended Solids Max Diameter (mm): 2.4 | Max Dry Suction Lift (ft.): 15 | Max Dry Suction Lift (m): 4.5 | Sound Level (dB(A): 75 | Model Series: Standard Pump | Center Section: Polypropylene | Connections: Aluminum | Hardware: Stainless Steel | Seat Material: Polypropylene | Ball Material: PTFE | Diaphragm Material: PTFE
Features:
- Mobility – Compact, rugged design allows for easy mobility
- Efficiency – Motor design delivers optimum air efficiency
- Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation
- Versatility – Available in aluminum to withstand tough chemical applications
- Environmentally Sound – Bolted construction for leak-free fluid handling
- Serviceability – Easy access to ball checks and fluid caps for maintenance and repair
Made in USA:
Looking for more information about Ingersoll Rand ARO Diaphragm Pump? Click hereto view the Catalog
For help selecting the correct Ingersoll Rand ARO Diaphragm Pumps for your assembly application, call (800) 608-5210 or email [email protected]
